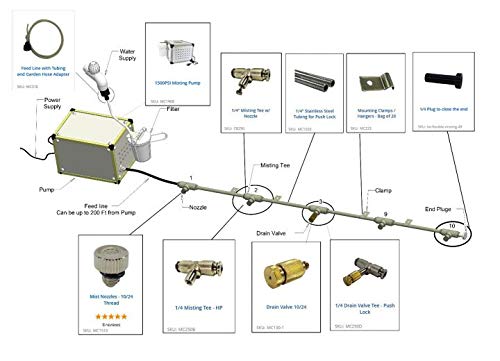

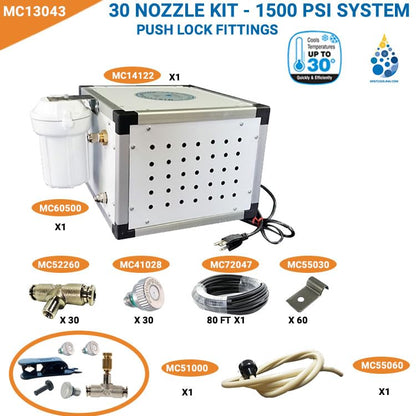

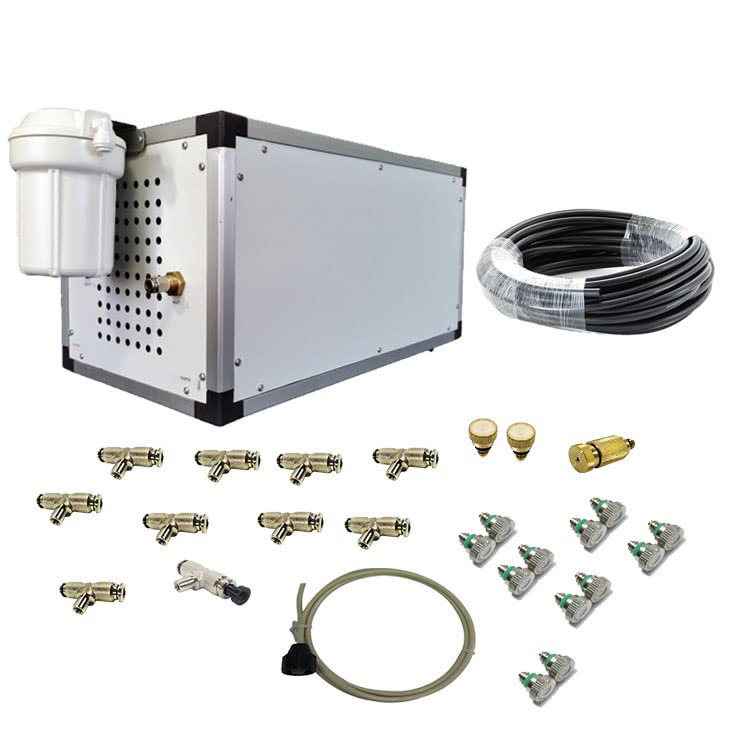

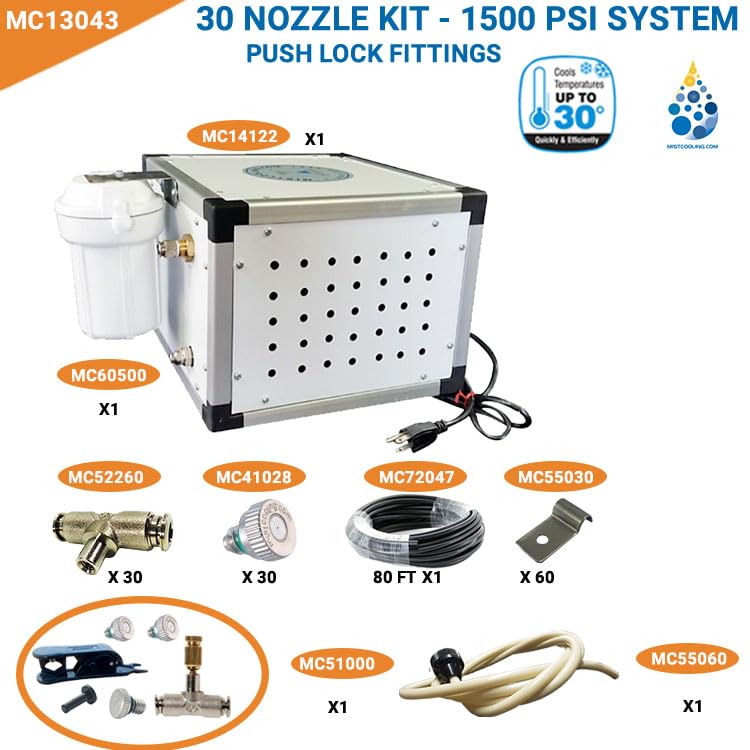

Features: Base 30 Nozzle Kit Contains: - 1 - Max1500 psi High pressure pump with built-in water on/off valve, low water cut off switch, pressure bypass, commercial 5-micron filtration, Outdoor Rust Proof Enclosure with on/off Switch; - 80ft 1/4" Nylon Tubing-Black - 30 - HP Push Lock Misting Tees; - 30- Stainless Steel Orifice Nozzles (0.006") - 1 - Push Lock End Plug - 2- Nozzle plugs - 2- Replacement Nozzles - 1- Drain Valve Assembly - Stainless Steel Mounting Clamps
Specs:1500 PSI Misting Pump: 0.15 & 0.30 GPM - For up to 40 Misting Nozzles - Pressure Adjustment Valve to allow increase or decrease of the outlet water pressure. - Pump pre-set for ideal working - Solenoid Valve – controls flow of water in the misting pump - Pressure Switch or no cut off water switch will turn pump off, if no water supply - Thermal Safety Swithc - Maximum Speed 1800 rpm - Full load Amps. (0.15/ 0.30 gpm.) 1.38/ 2.00 Amps - Noise level: 75 DB - Maximum Inlet Pressure–100psi
Filter: - 5 Micron Filter - Filter in the package comes with 3/8 inch inlet- outlet fitting. - Standard pump comes with ¼ inch push lock type fitting; However, it is placed on 3/8 inch male and ¼ inch female adapter. - Outlet comes with ¼ inch fitting as standard; however, depending on package requirement it can be modified to 3/8 inch. - Scale free filters can also be added to mist systems to prevent clogging of nozzles due to hard water.
Tubing - ¼ Inch OD Tube - Rated for 1500 PSI - Nylon Tubing - UV Treated - Available in Black, White, Beige and Grey Colors
Fittings - ¼ Inch - Push Lok – Push to Connect - Nickel Plated - Rated for 2000 PSI - Re-Usable - Misting Tee comes with 10/24 threads - End Plug – Simply connect it to the misting Tee. MC13040-MC13042
