12V/24V Fans Controller Switch #0444, Temperature Range 104F to 230F | LED Real-Time Display, Thermatic Dual Fan Relay Kit, Digital Radiator Electric Fan Controller Switch Kit

About this item

• Digital Thermal Fan Switch for 0444: This 0444 digital radiator fan controller supports 12V and 24V dual-voltage applications (for 24V fan operation, pairing with standard 24V relays is recommended). Designed specifically for automotive and industrial cooling systems, it fits various vehicle models and equipment, featuring easy installation and strong versatility

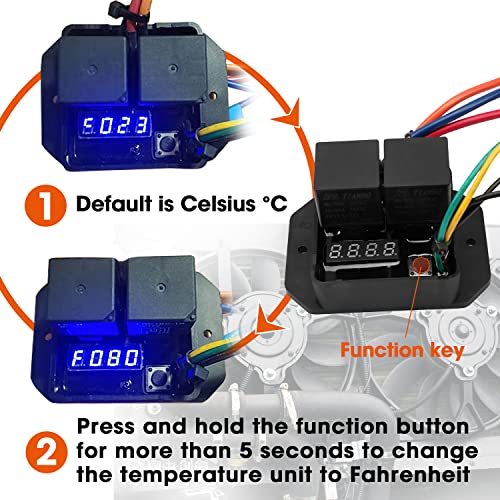

• Precise Temperature Control: The electric fan controller kit adjustable temperature range covers 104F-230F (40C-110C), with support for both C/F display units. The LED digital screen shows real-time temperature and preset temperature simultaneously, and it comes with power-off memory. The fan automatically activates when the preset temperature is reached, and shuts off 5C below the set point for energy efficiency
• Smart Dual Fan Management: The adjustable fan controller set can operate 1-2 fans; the second fan starts with a 10-second delay after the first fan activates, avoiding circuit overload. It also works with the air conditioning system, greatly improving cooling efficiency and saving energy. Circuit Type: Pre-programmed micro controller

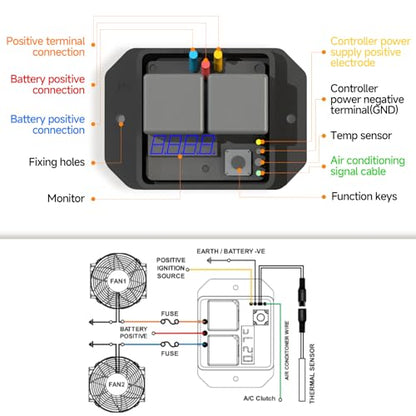

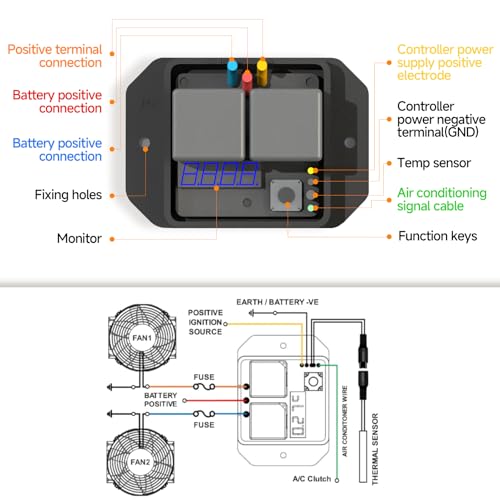

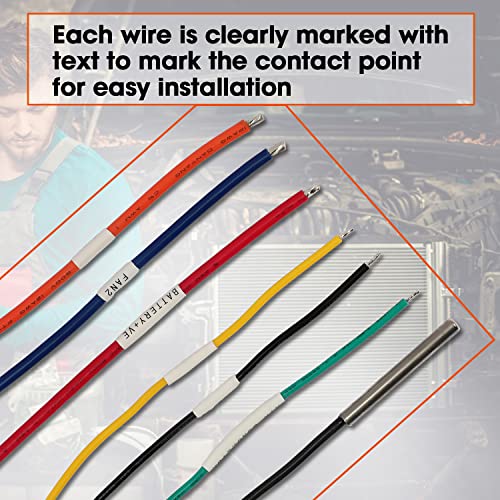

• Easy Installation: Equipped with clear installation instructions and color-coded wires (red/B+, black/B-, yellow/ignition+), it enables quick installation even in tight engine compartments. Extended 3m sensor cable, and all wires use oversized diameters to ensure current-carrying capacity. The harness has built-in A/C override or manual toggle switch wires for flexible operation

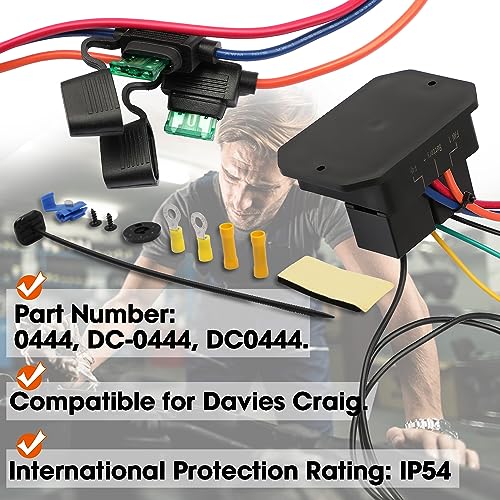

• Durable Quality: Digital radiator fan switch kit is made of high standard material, wear resistant and durable. Professional craftsmanship ensures long-term stable performance, its size 3.75" x 2.6" x 2.2" compatible with OE# 0444/DC0444/DC-0444

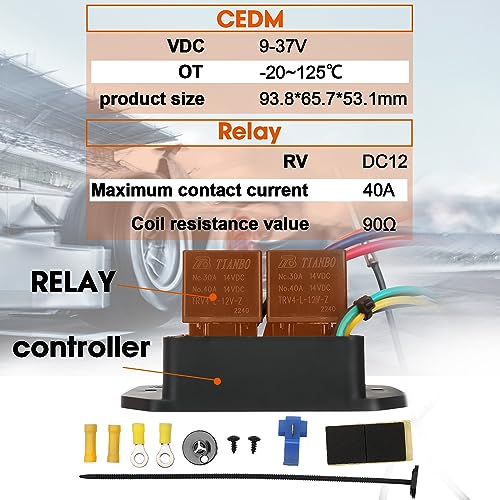

• High Performance Specifications: Max voltage of 15V with max current capacity of 50A, featuring dual relay setup for reliable operation. Single speed configuration with 10-second delay to start up the second fan, ensuring optimal performance for both single and dual fan applications

Overview

• Operation Mode: OFF-NONE-ON
• Current Rating: 50 A
• Operating Voltage: 12 volts
• Contact Type: Normally Closed
• Connector Type: Plug In
• Brand: Fexhull
• Switch Type: Push Button, Temperature Switch
• Terminal: Button
• Material: Plastic
• Item dimensions L x W x H: 3.75 x 2.6 x 2.2 inches
